Nut Block Kit
The Kit Includes:
| Product No | Product Name | Qty |
| 1 | Anti-Backlash Nut Block 8mm For Lead Screw TR8*8 | 1 |
| 2 | M5 Low Profile Screws– 20mm | 2 |
| 3 | Metric Aluminum Spacers – 3mm | 2 |
| 4 | M5 Nylon Lock Nut | 2 |
Tools required:
- Allen keys
- 8mm spanner/wrench
Assembly instructions:

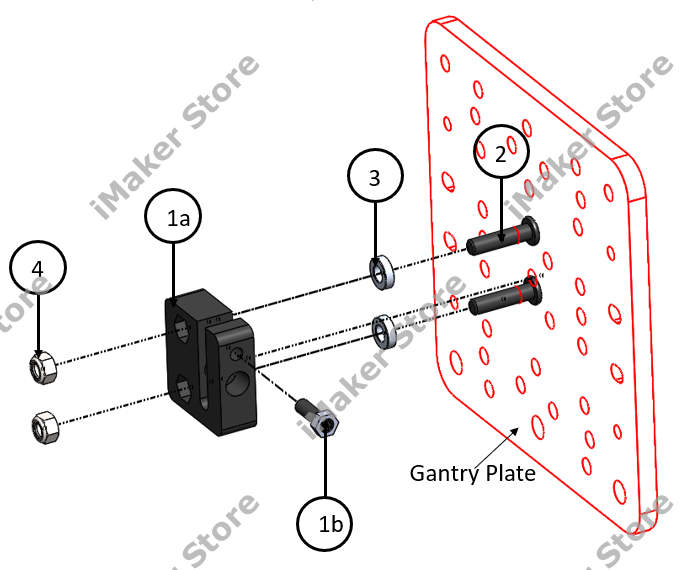

Preventing backlash in the leadscrew movement is easy with the anti-backlash nut. Follow the instructions in the drawing to attach the nut to the gantry plate. To ensure that backlash is prevented, make sure the setscrew (1b) is securely tightened.
