    Belt Driven Linear Actuator Kit -1000mm

    Be the first to review this product
    ₹ 6,608.00 incl tax

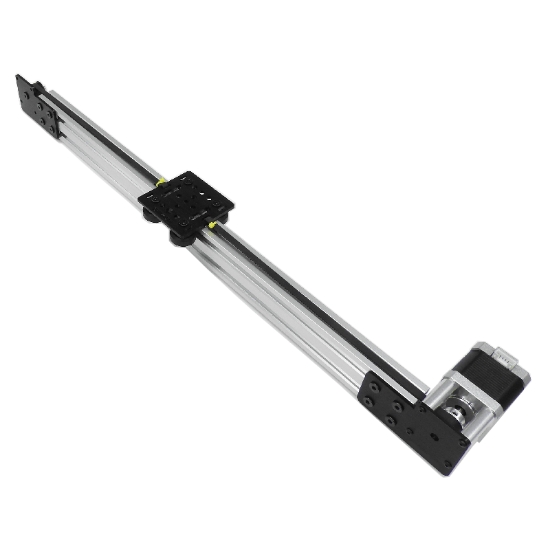

    The Belt Actuator Kit equipped with V-slot 20mm gantry and provides smooth operation for a Gantry along a 20×40 V-Slot Linear Rail. It is both accurate and quick, ideal for industrial applications. This Kit includes a Nema 17B Stepper Motor! This kit is an easy way to get all the pieces needed for the build. You'll have everything you need to get up and running in no time.
    SKU: KIT-ACTUATOR-BLT-S-10
    Availability: In stock

    Description

    This kit is an easy way to get all the pieces needed for the build. Refer to the knowledgebase tab in the footer for instructions on the assembly.

    The kit includes: The below items plus additional items if not mentioned below

    Item NameQty
    NEMA 17 Steeper Motor1
    GT2 Timing Pulley 20T -ID5xW6mm1
    Metric Aluminum Spacers – 3mm1
    Metric Aluminum Spacers – 30mm4
    M3 Button Head Screws – 35mm4
    M3 Button Head Screws – 10mm4
    Delrin Smooth Idler Pulley Wheel Kit1
    M5 Low Profile Screws-8mm8
    Tee Nuts M58
    Actuator Pulley Plate2
    Cable Zip Ties– Pack of 101
    V-Slot 20mm Gantry Bundle1
    GT2 Open Timing Belt 3
    V-Slot 2040 – 1000mm1

    Tools required:

    • Allen keys
    • 8mm spanner/wrench

    Pro Tip:

    • Don’t forget to slide the Gantry onto the V-Slot before you attach both Actuator Pulley Plates.
    • Don’t forget to attach the Timing Pulley to the Nema17B Motor shaft before attaching the Motor to the Plate.
    • Follow this process for correct tensioning the GT2 Belt:
      1. Tighten the screws on one Actuator Pulley Plate to secure the Plate in position.
      2. Feed the Belt over the Pulleys and through the hollow center of the V-Slot
      3. Tie or Clamp the GT2 Belt on both sides of the Gantry
      4. Pull the other Actuator Pulley Plate away to Tension the GT2 Belt, and tighten the screws on the Plate while it is under tension

    Description

    This kit is an easy way to get all the pieces needed for the build. Refer to the knowledgebase tab in the footer for instructions on the assembly.

    The kit includes: The below items plus additional items if not mentioned below

    Item NameQty
    NEMA 17 Steeper Motor1
    GT2 Timing Pulley 20T -ID5xW6mm1
    Metric Aluminum Spacers – 3mm1
    Metric Aluminum Spacers – 30mm4
    M3 Button Head Screws – 35mm4
    M3 Button Head Screws – 10mm4
    Delrin Smooth Idler Pulley Wheel Kit1
    M5 Low Profile Screws-8mm8
    Tee Nuts M58
    Actuator Pulley Plate2
    Cable Zip Ties– Pack of 101
    V-Slot 20mm Gantry Bundle1
    GT2 Open Timing Belt 3
    V-Slot 2040 – 1000mm1

    Tools required:

    • Allen keys
    • 8mm spanner/wrench

    Pro Tip:

    • Don’t forget to slide the Gantry onto the V-Slot before you attach both Actuator Pulley Plates.
    • Don’t forget to attach the Timing Pulley to the Nema17B Motor shaft before attaching the Motor to the Plate.
    • Follow this process for correct tensioning the GT2 Belt:
      1. Tighten the screws on one Actuator Pulley Plate to secure the Plate in position.
      2. Feed the Belt over the Pulleys and through the hollow center of the V-Slot
      3. Tie or Clamp the GT2 Belt on both sides of the Gantry
      4. Pull the other Actuator Pulley Plate away to Tension the GT2 Belt, and tighten the screws on the Plate while it is under tension
